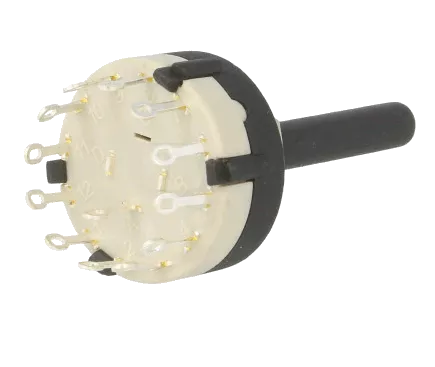

SR26NS126M10 - Rotary Switch 2x6 Solder Lug BBM

Product no.: SR26NS126M10

Multiposition rotary switches with 6 mm shaft .
- available with terminals for PCB mounting
or with solder lug terminals
- electrical ratings : 0,3 A / 125 V AC, 1 A / 30 V DC
- insulation resistance : 100 MOhm min. at 500 V DC
- contact resistance min. : 25 mOhm
- mechanical life : 10 000 operations
- rotary movement : every 30°
- fixation thread : M10 x 0,75
- shaft length : 30 mm
- switch height without
terminals : 52,5 mm
- switch body diameter : 28,2 mm
- switching mode : BBM - without short-circuiting
- temperature range : -10°C to +60°C
